Specification:
- Ultra-long communication distance of 15km
- Constant RF power output with +20dBm-100mW voltage change
- High sensitivity: as low as -148dBm
- Half-duplex SPI communication
- Programmable bit rate up to 300kbps
- Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation
- 127dB RSSI dynamic range
- Automatic RF signal detection, CAD mode and ultra-high speed AFC
- Packet engine with CRC up to 256 bytes

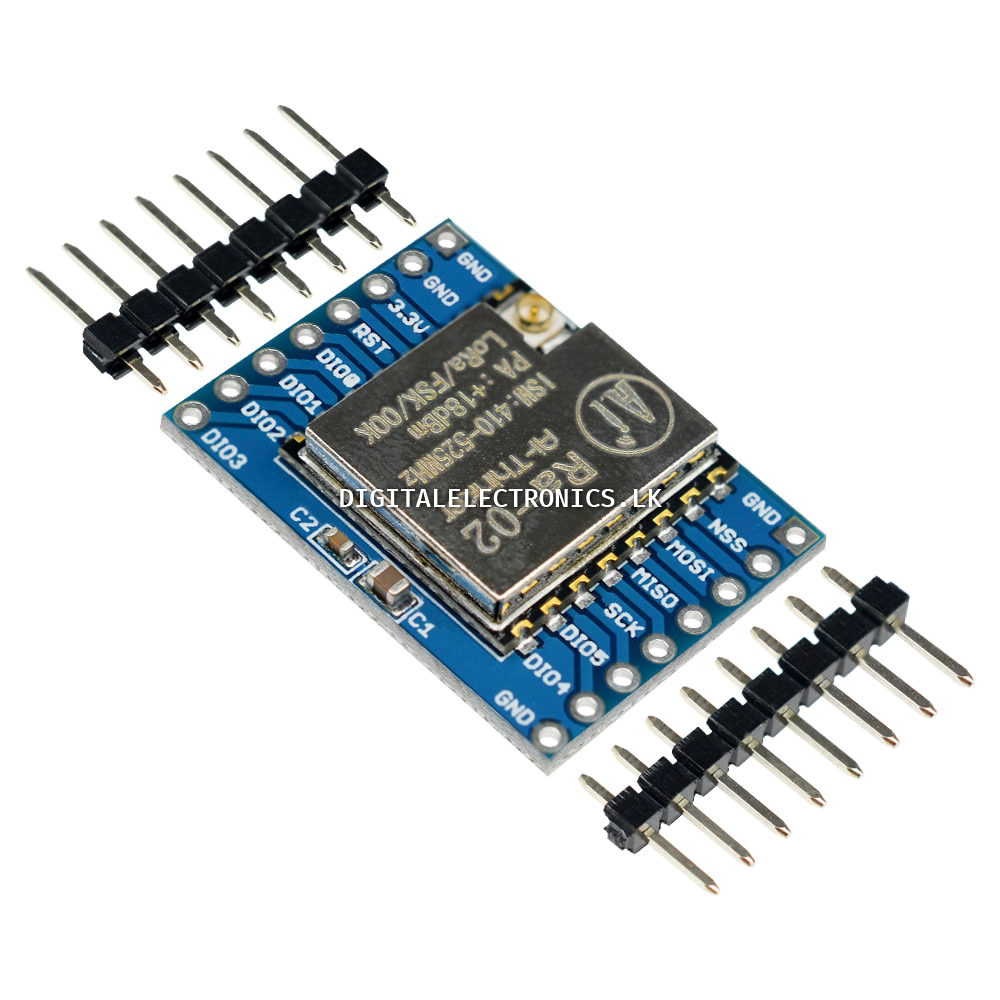

| PinFoot number | PinFoot name | Function Description |
| – | ANT | antenna |
| 1,2 | GND | Ground |
| 3 | 3.3V | 3.3Vpowered by |
| 4 | RESET | Reset |
| 5 | DIO0 | Digital IO0, software configuration |
| 6 | DIO1 | Digital IO1 software configuration |
| 7 | DIO2 | Digital IO2 software configuration |
| 8 | DIO3 | Digital IO3 software configuration |
| 9 | GND | Ground |
| 10 | DIO4 | Digital IO4 configuration |
| 11 | DIO5 | Digital IO5 software configuration |
| 12 | SCK | SPIClock input |
| 13 | MISO | SPIData output |
| 14 | MOSI | SPI data input |
| 15 | NSS | SPIChip select input |
| 16 | GND | Ground |
